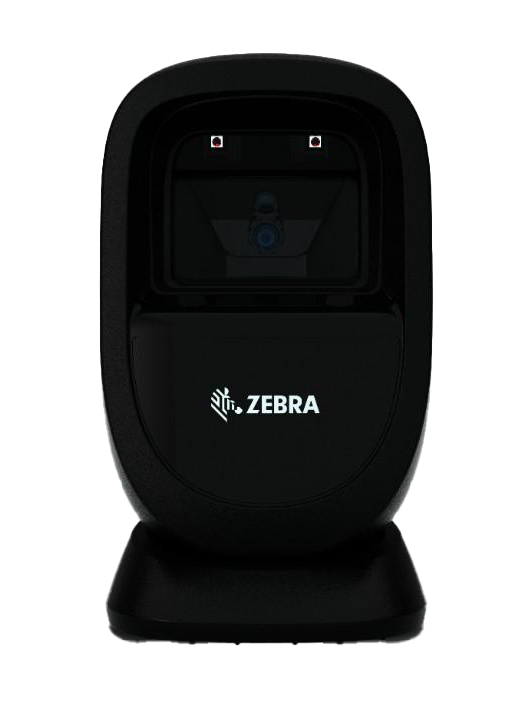

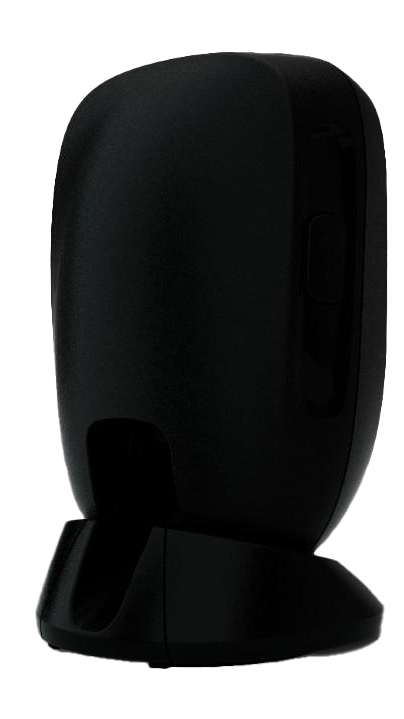

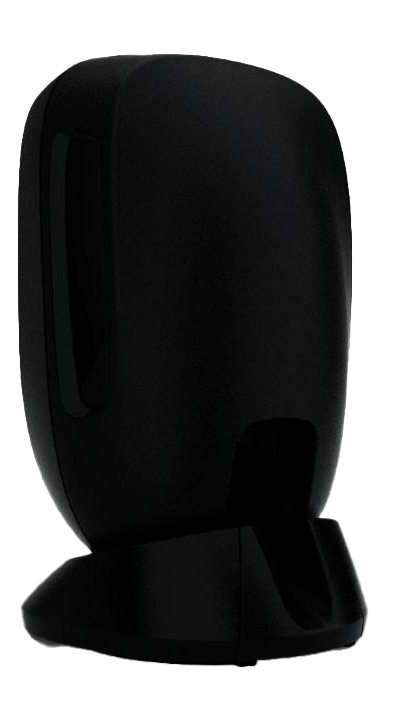

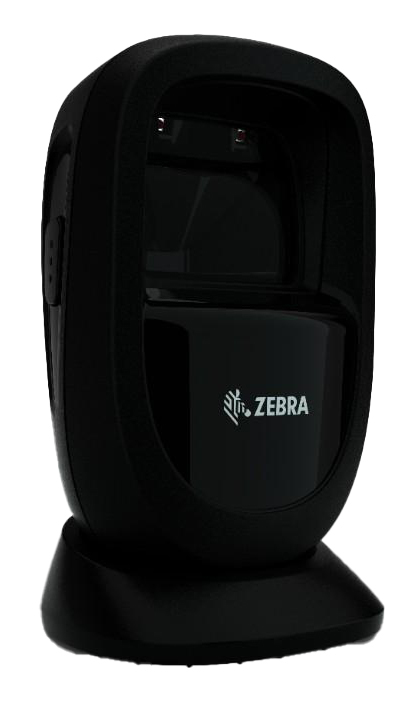

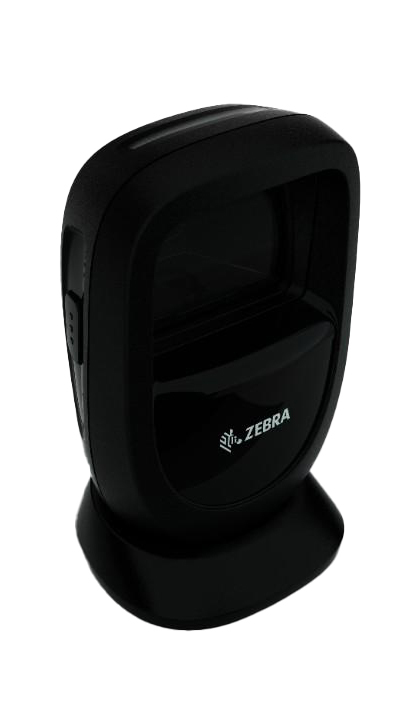

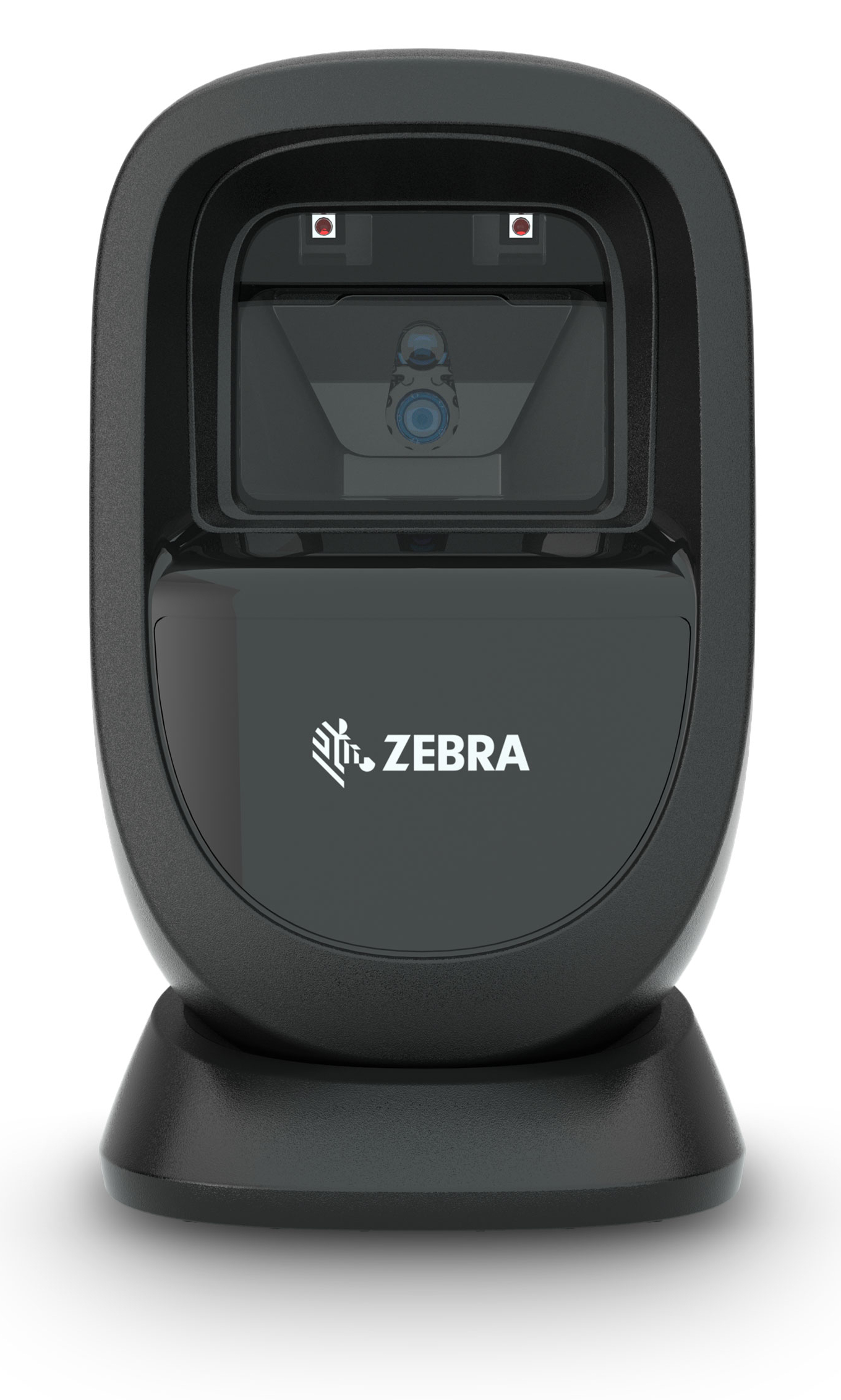

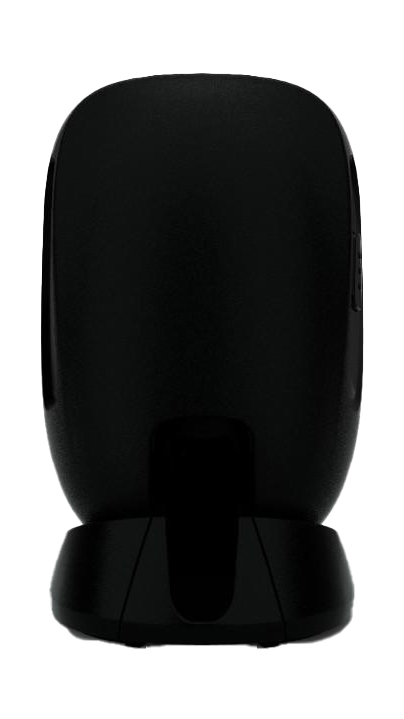

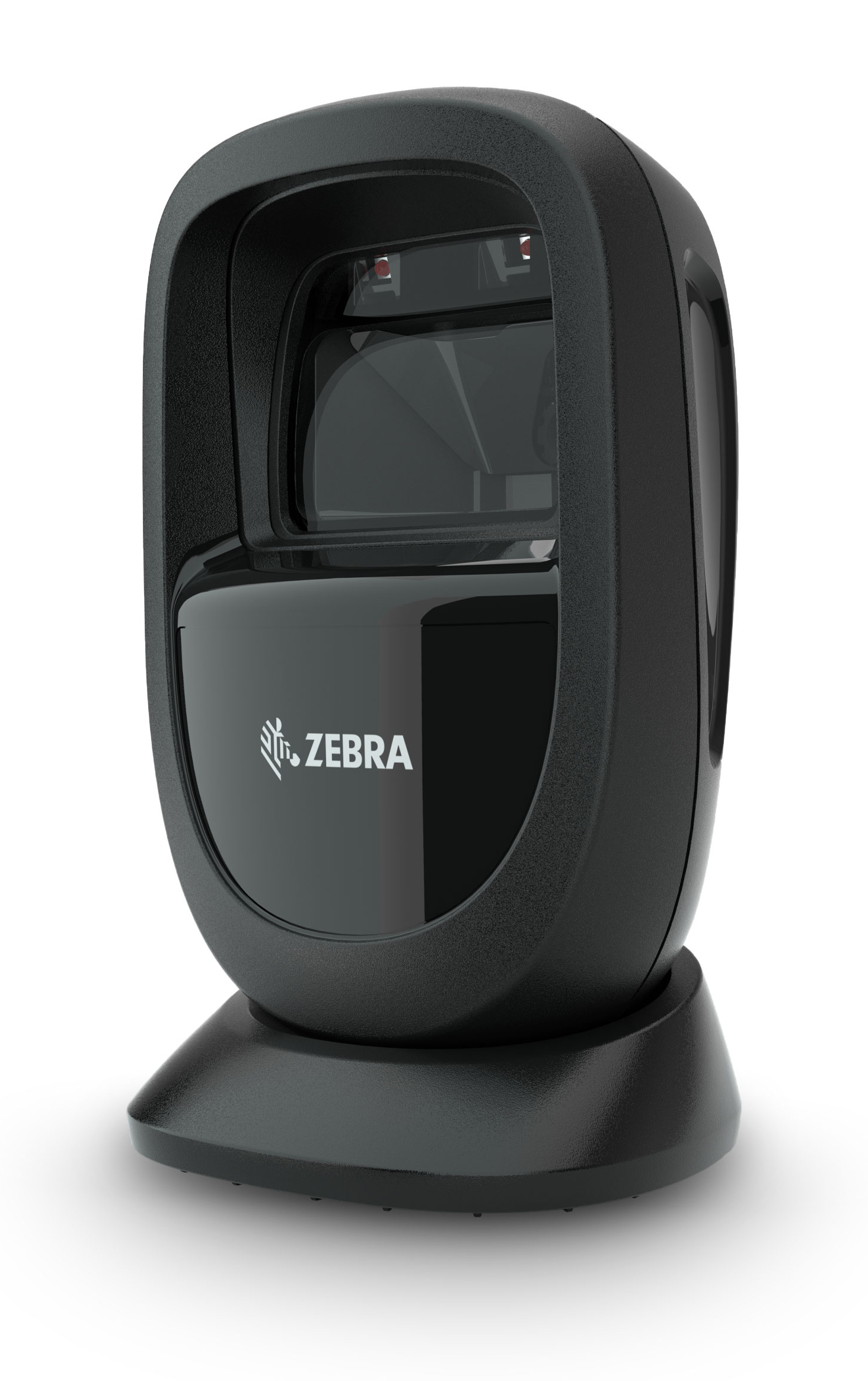

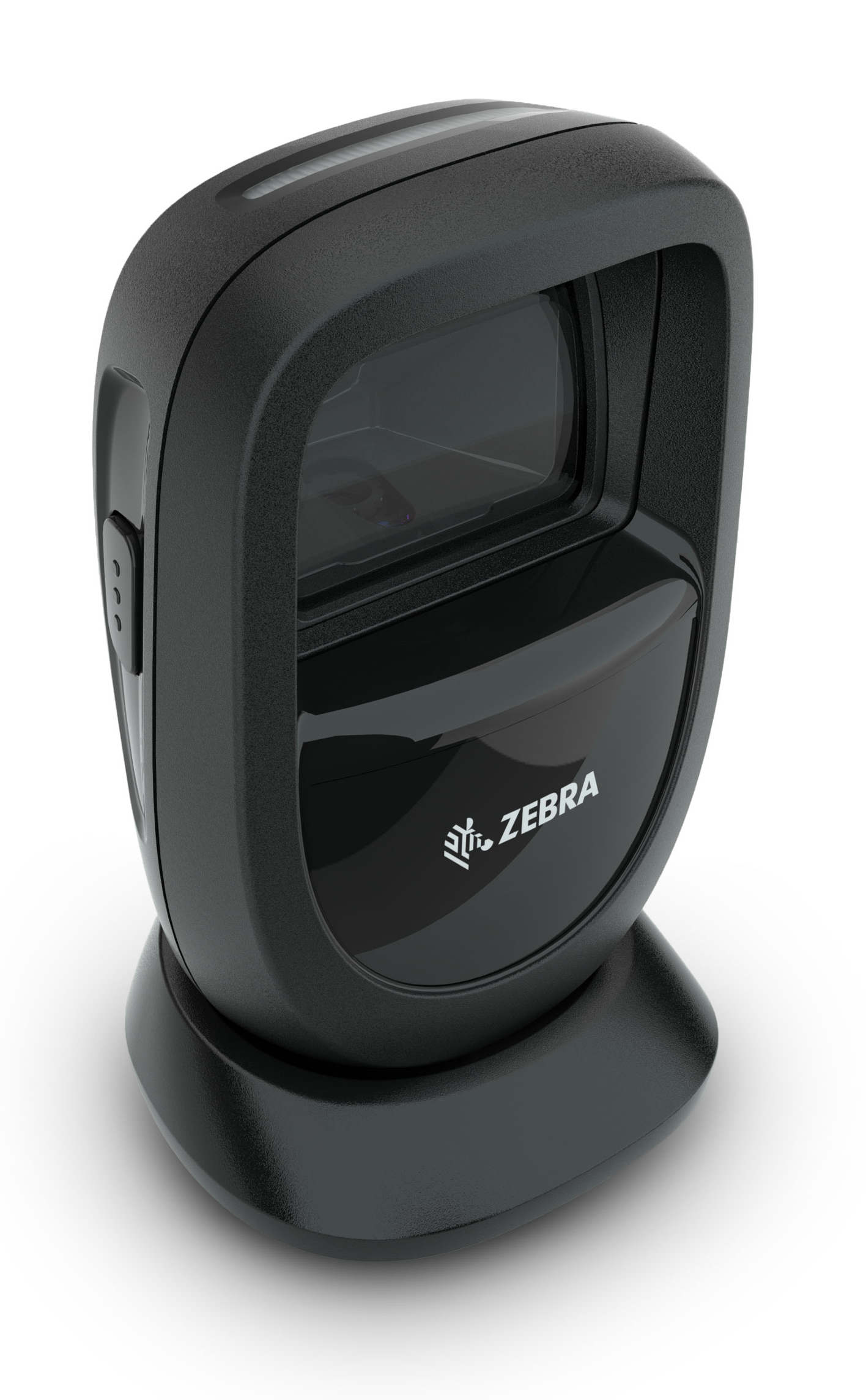

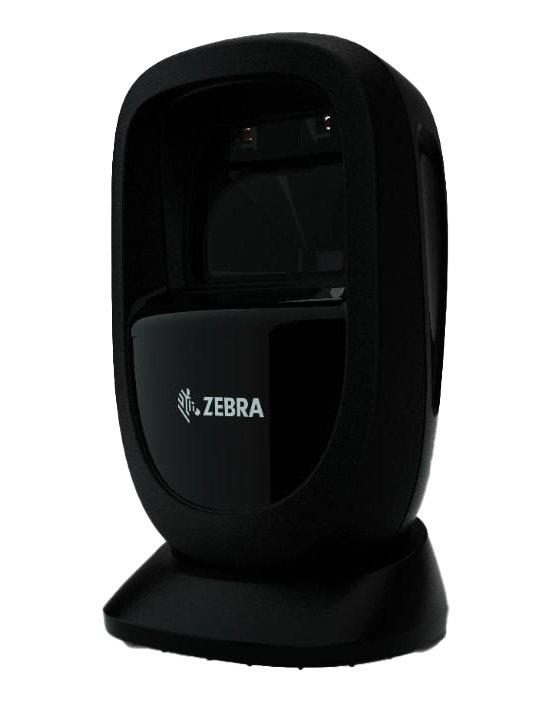

Hands-free presentation imager with on-the-fly handheld use for fast, versatile retail scanning.
Based on how this specific model is built and used. It suits other settings too — tell us your business on WhatsApp and we’ll confirm the fit.
Yes — it connects as a plug-and-play USB device and works with Odoo, Wafeq, Maxim POS and virtually any till software. Not sure? WhatsApp us a photo of your setup.
This is a corded model for a fixed checkout. If your staff need to scan around the shop floor, ask us about the cordless versions.
100% genuine and sealed, with the manufacturer’s warranty, plus our 15-day replacement guarantee.
Popular add-ons that pair with the Zebra DS9308.
Full official manufacturer specs — tap a section to expand.
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance | 66 cm |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Pitch reading angle | -60 - 60° |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Power source type | RS-232, USB |
| Input voltage | 5.5 V |
| Width | 86 mm |
| Depth | 83 mm |
| Height | 145 mm |
| Weight | 318 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84716070 |
