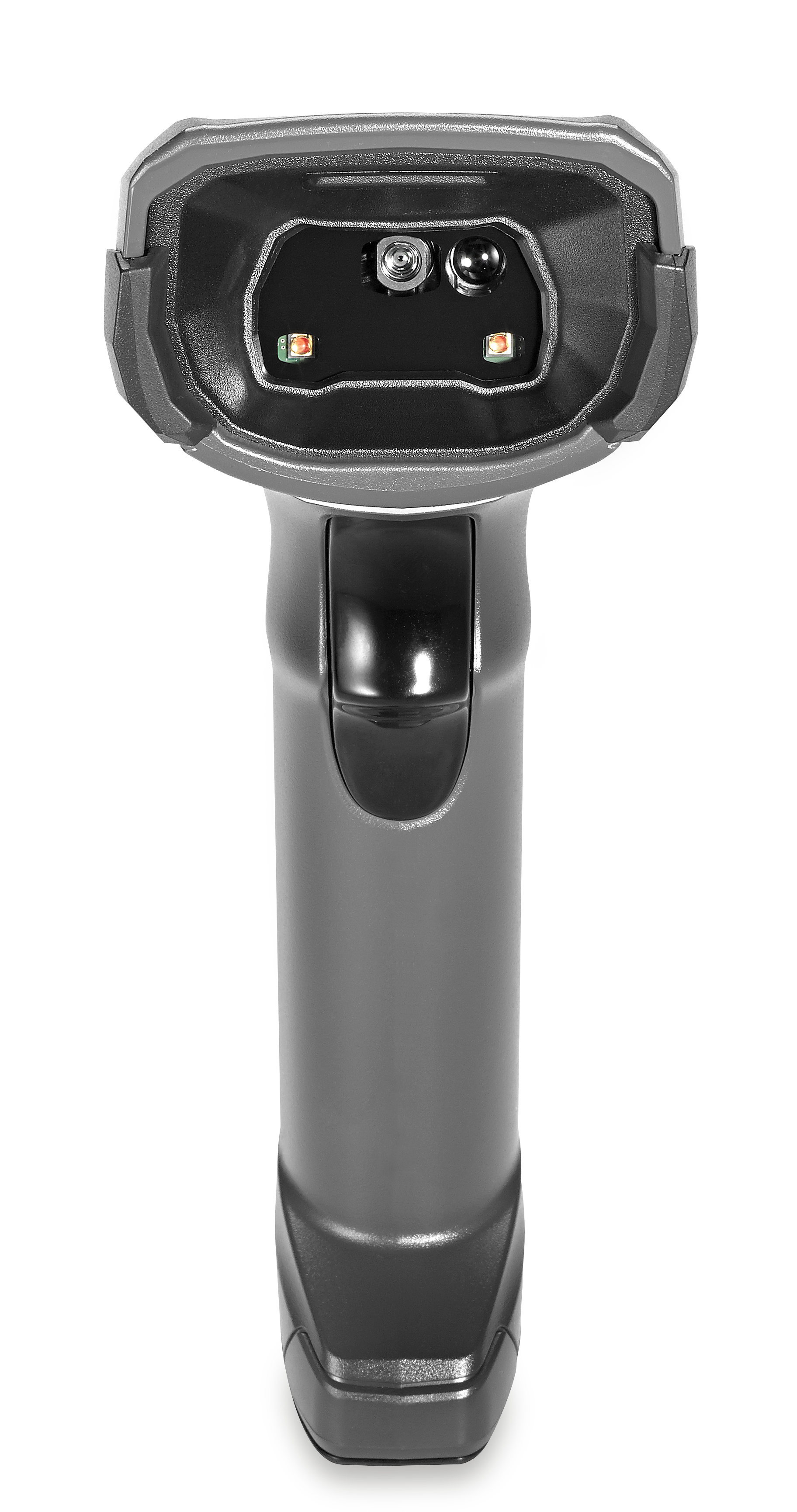

Corded high-performance 1D/2D handheld imager for demanding retail scanning
These are common settings — not a limit. This model works just as well in manufacturing, logistics, warehousing, healthcare, education and beyond. Not sure it fits your operation? WhatsApp us and we’ll confirm before you buy.
Yes — it connects as a plug-and-play USB device and works with Odoo, Wafeq, Maxim POS and virtually any till software. Not sure? WhatsApp us a photo of your setup.
This is a corded model for a fixed checkout. If your staff need to scan around the shop floor, ask us about the cordless versions.
100% genuine and sealed, with the manufacturer’s warranty, plus our 15-day replacement guarantee.
Popular add-ons that pair with the Zebra DS8108.
Full official manufacturer specs — tap a section to expand.
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Input voltage | 5 V |
| Power consumption | 450 mA |
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 156 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84716070 |
